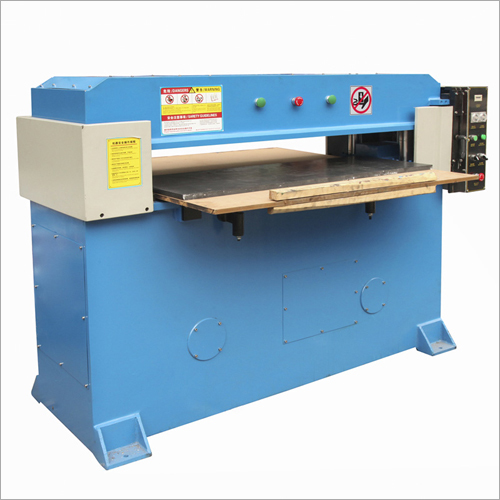

Blister Cutting or Punching Machine

Product Description

Blister Cutting Punching Machine has gained a large appreciation due to its advance and automatic features that makes it a highly efficient device. It has compact design that allows simple operations and installation. In addition to this,Blister Cutting Punching Machine is extremely durable and accessible at highly reasonable range of prices.

Working principle:

Using the advanced crank connecting rod mechanism. By the motor drives the flywheel, the flywheel through shaft and pinion drive big gear, crankshaft, gear through the clutch to drive the crankshaft drives the connecting rod to make the slider to work.

Machine application:

This is double column cutting machine, is suitable for the single layer or layers of leather, plastic, artificial leather, textiles and other materials forming blanking, as long as the match to be on the molding box knife, can get various shapes of products, such as soles, shoes, handbags, gloves, toys, clothing, blister, plastic and craft products.

Main Parameters

• Model---LK-60 T
• Power supply---AC380 V/ 220V 3 phase,50/60 HZ
• Power---2200 W
• Cutting pressure---10 T
• Cutting area---410*780 mm
• Machine size---1180*970*1650 mm
• Net weight---600 KG

Main Features:

• The machine has compact structure, smooth movement, less consumption, even platen movement using a crank rod and health institutions clutch control, convenient operation, safe and reliable.
• The feet or hands button operation pressure plate, ensure the safety of operators.
• The intermittent type single stroke operation, the emergency stop device, to ensure safe operation.
• Automatic lubricating system ensures machine precision and enhance machine durability.
• It is adjustable according to the different height of products any pressure plate spacing.
